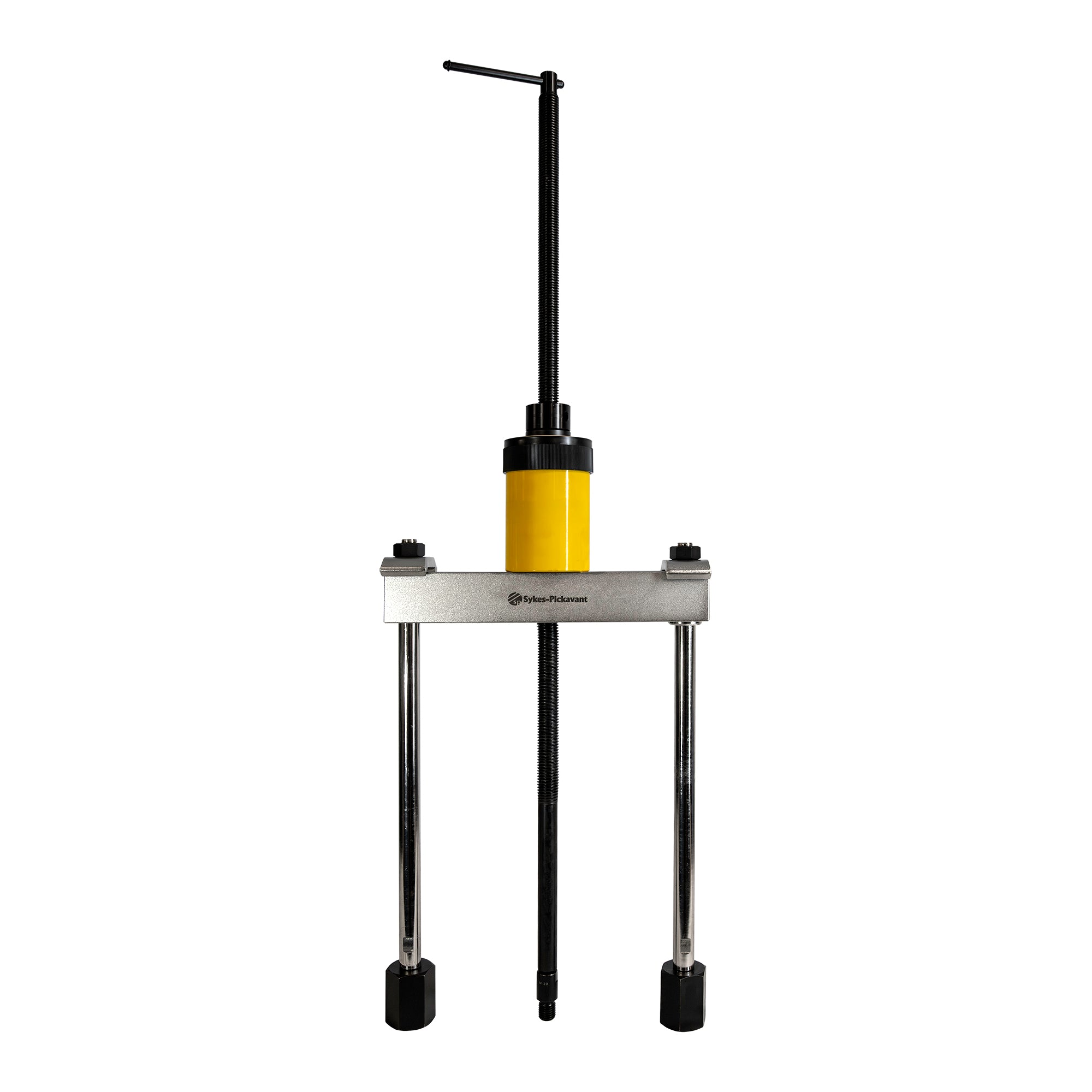

20960000 - 20T Hydraulic Internal Thread Puller

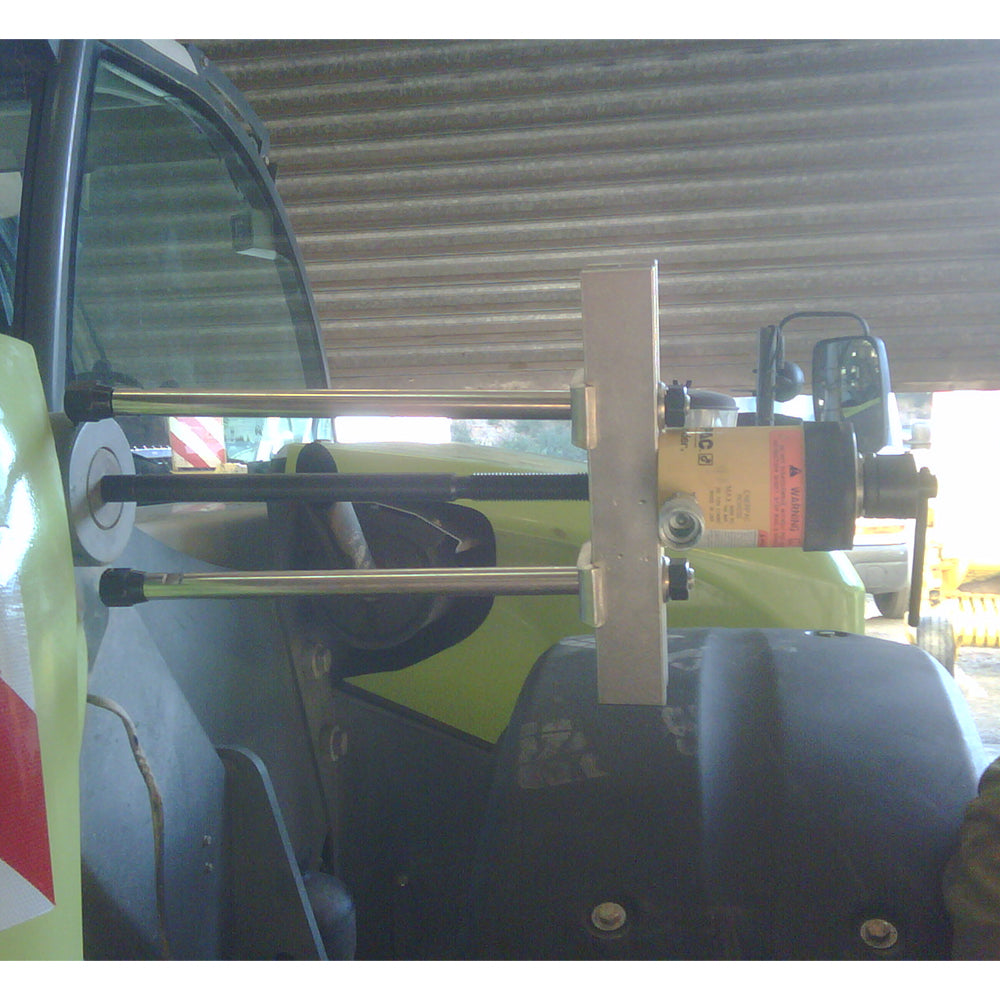

Designed for controlled, high force extraction where traditional legged pullers are not suitable. Our Hydraulic Internal Thread Puller provides a secure and precise pulling solution using an internal threaded connection point. Ideal for removing and installing shafts and bolts from agricultural machinery and similar.

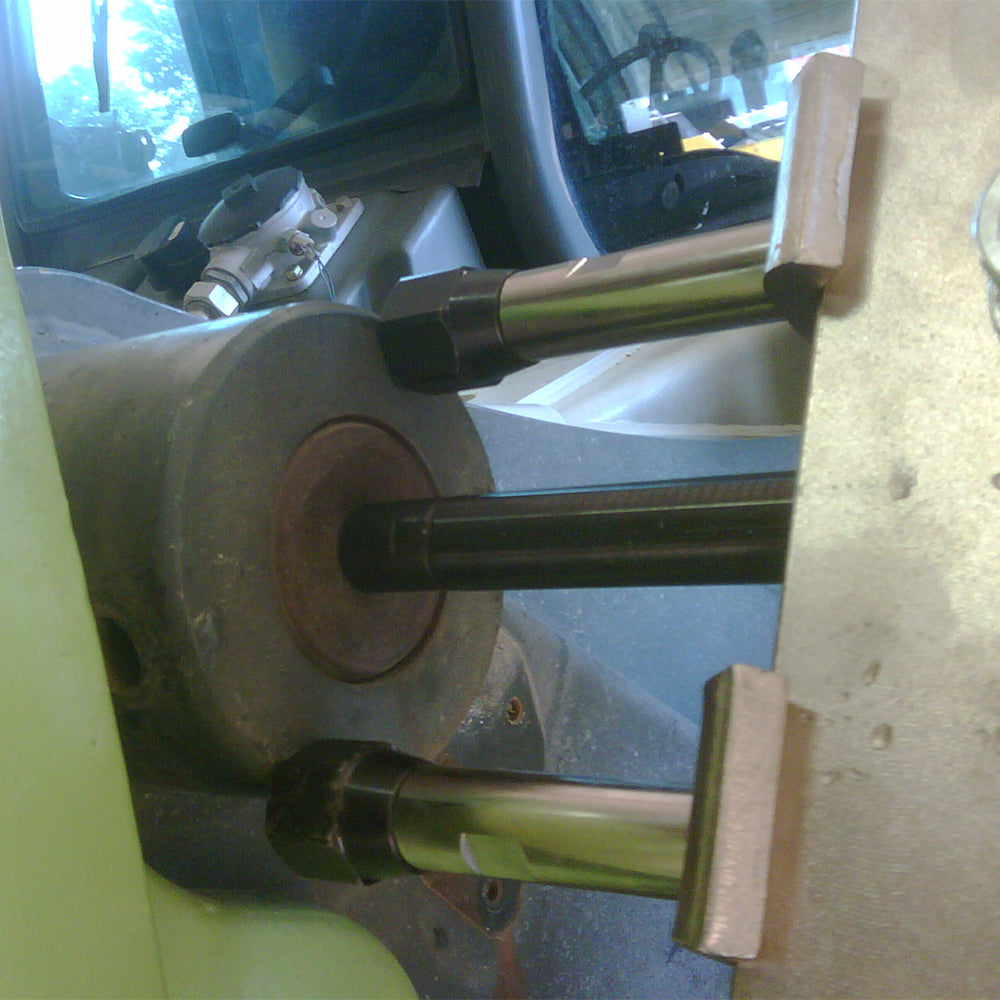

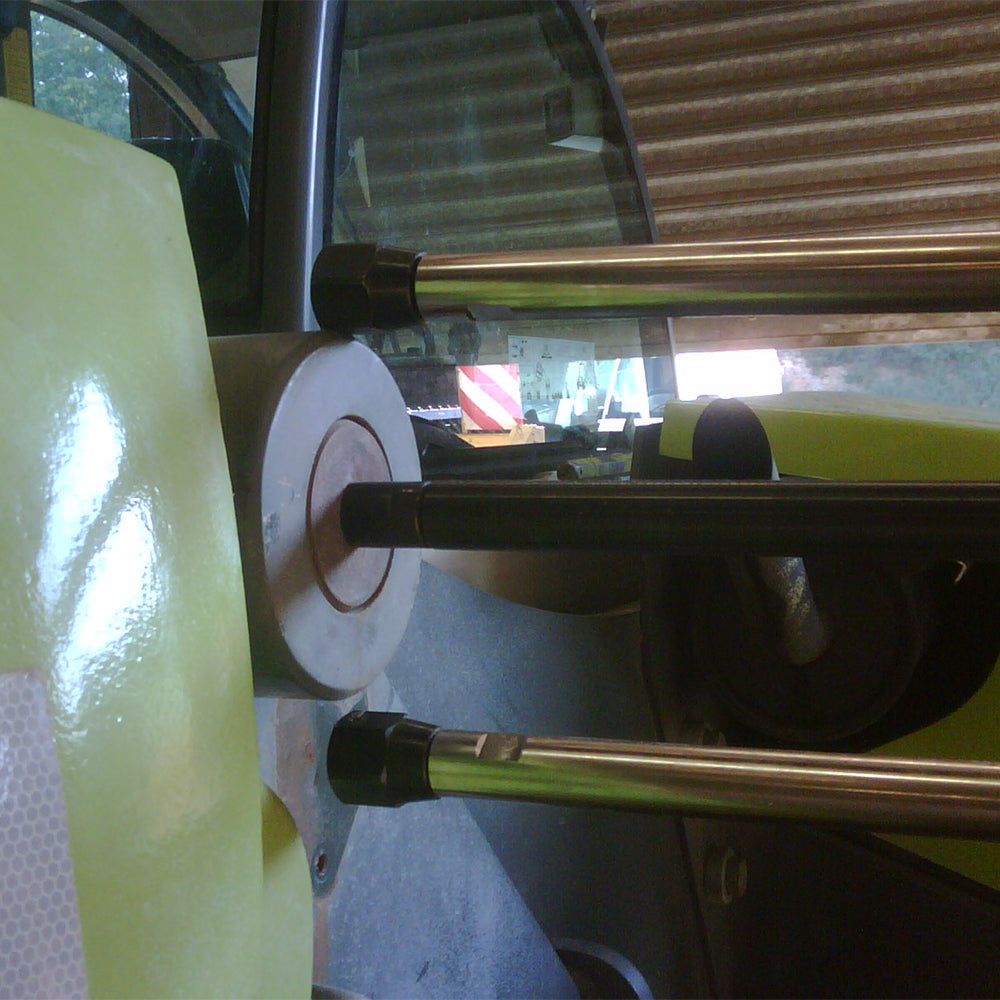

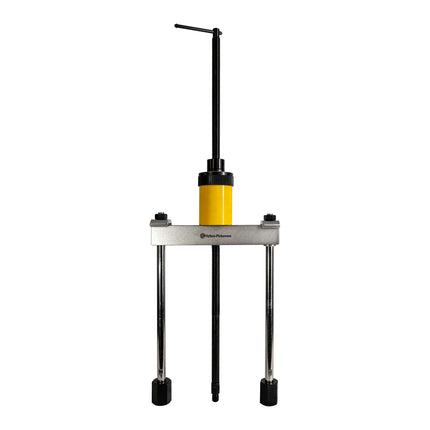

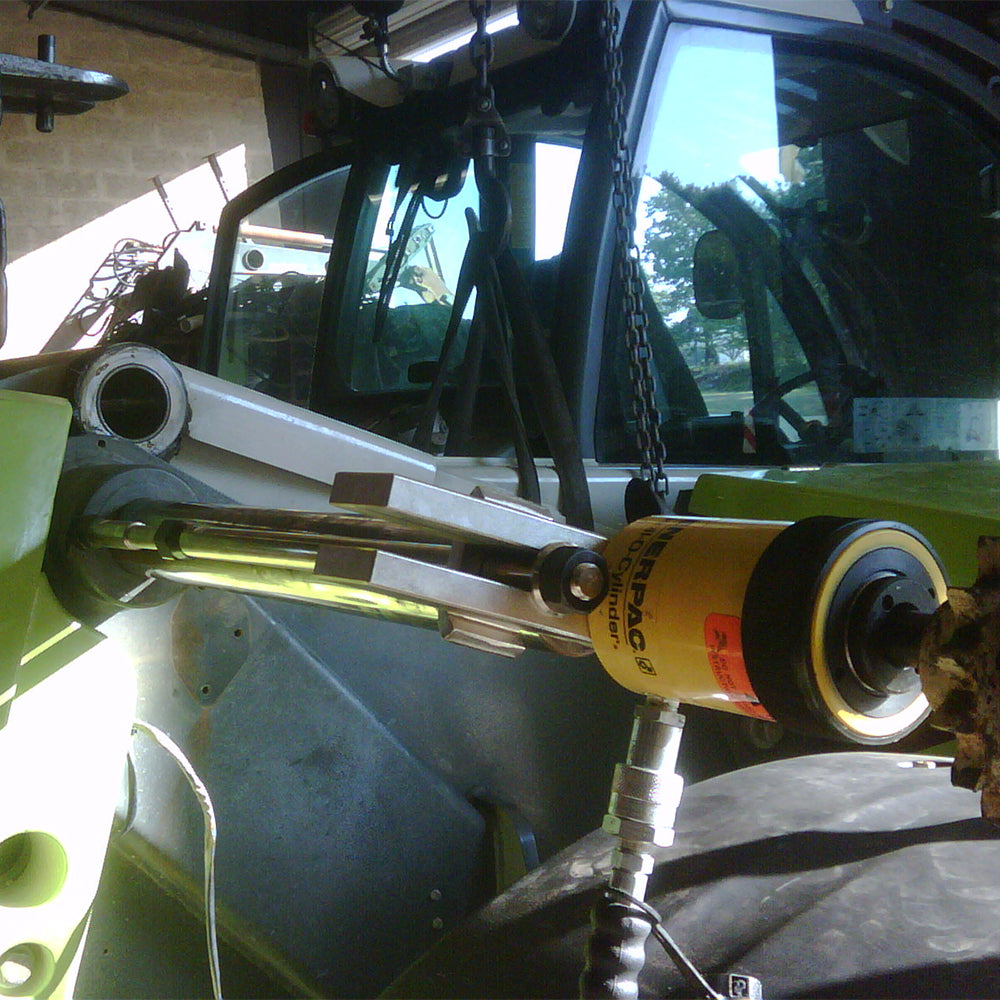

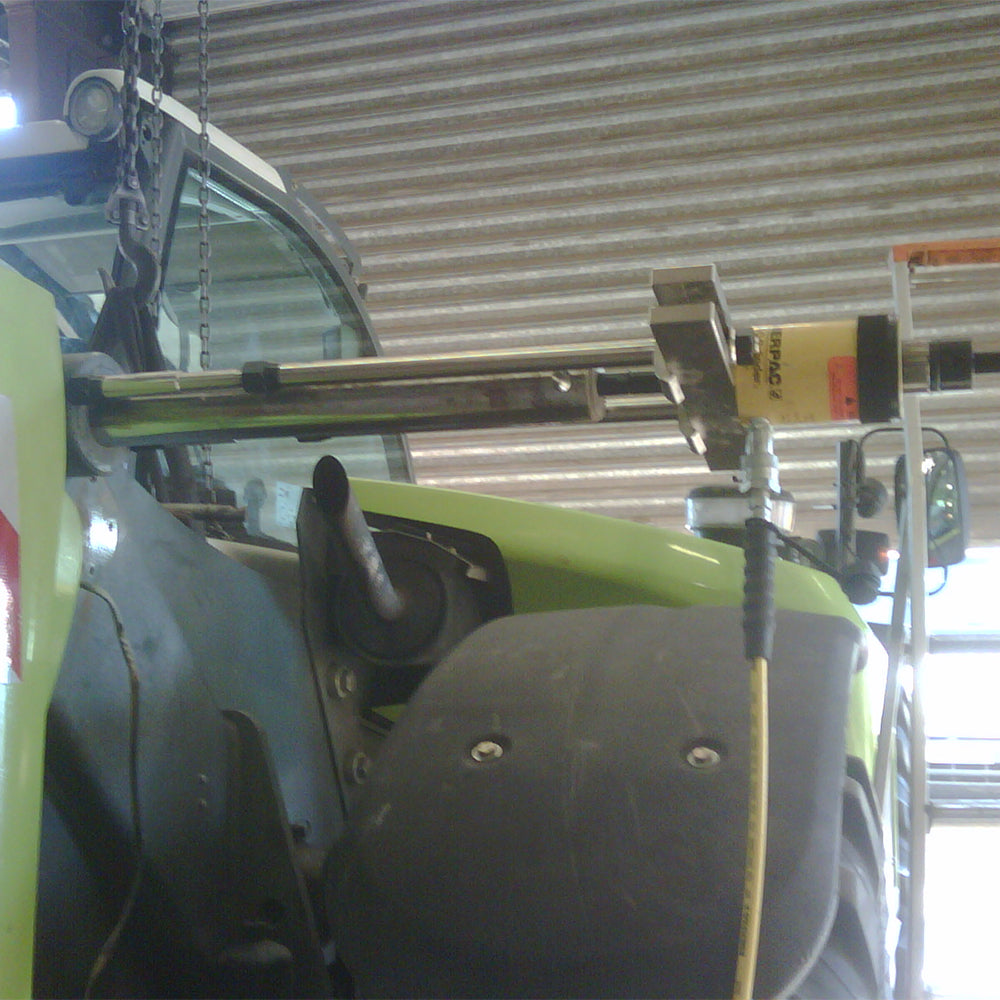

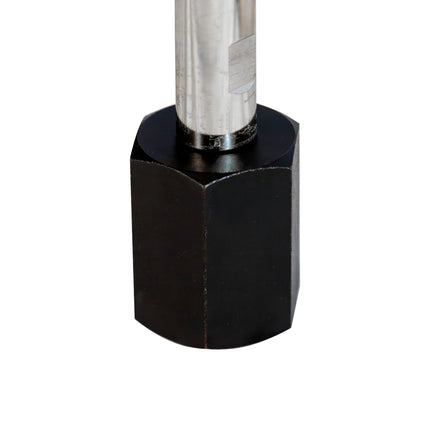

Instead of relying on external gripping legs, this system operates by threading a high tensile pull rod directly into a pre tapped hole (M12-M20). A heavy duty cross beam spans the work piece, while two extendable support legs brace firmly against the surrounding surface. A 20 Tonne hydraulic ram, operated via a hand pump (optional extra), delivers smooth and controlled extraction force exactly where it is needed.
Key Features
- Internal thread pulling principle - Ideal where external grip is not possible

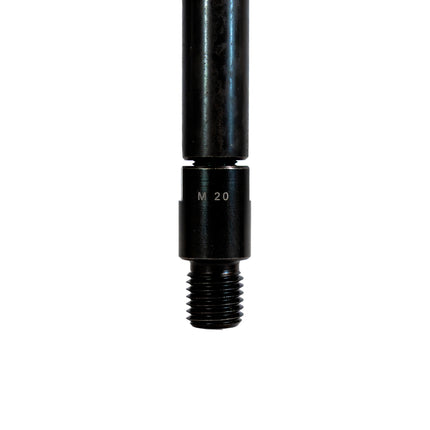

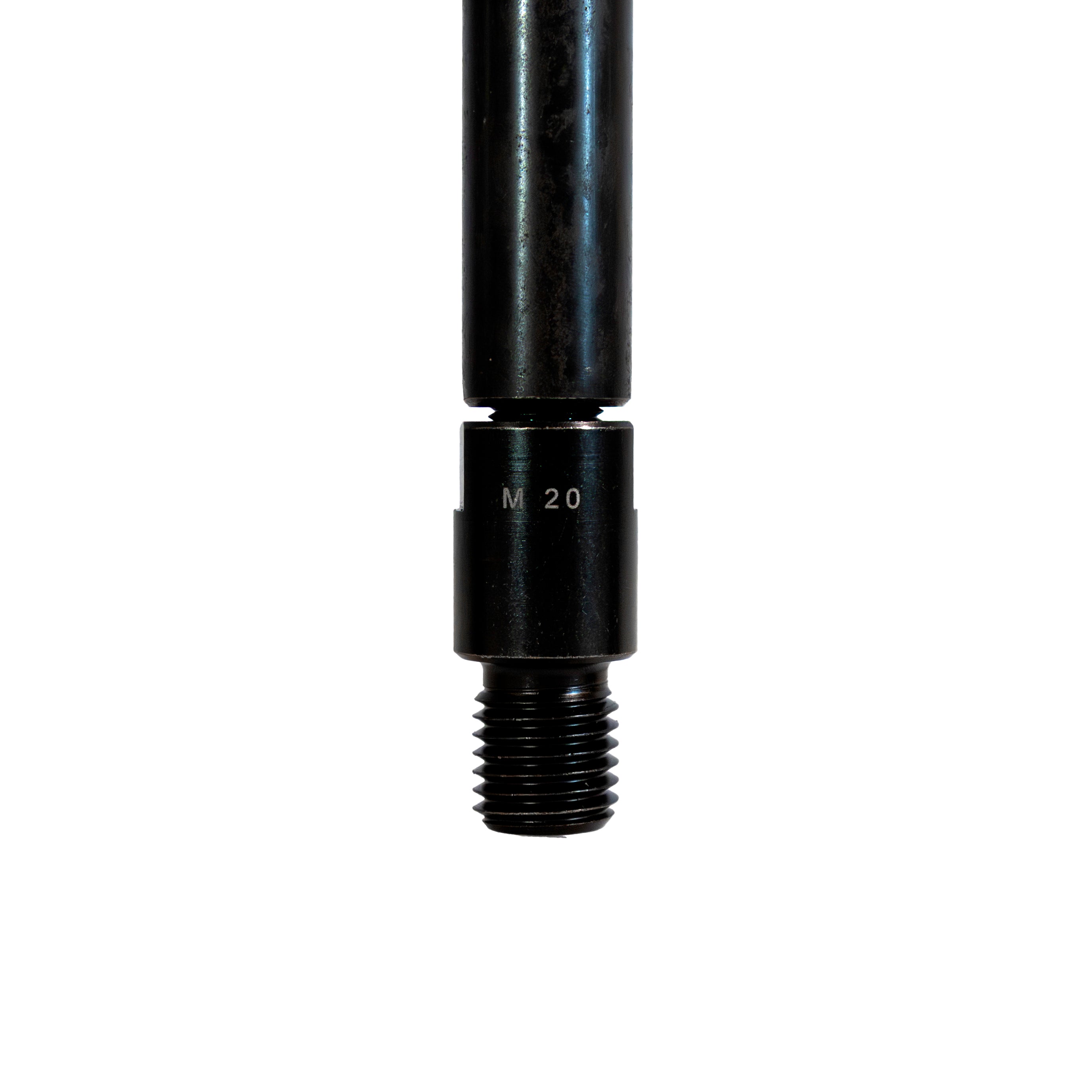

- Threaded adaptor allows the pin to be pulled using an existing thread, or by tapping a thread into the pin when required.
- Suitable for threaded holes - M12/M14/M16/M18/M20

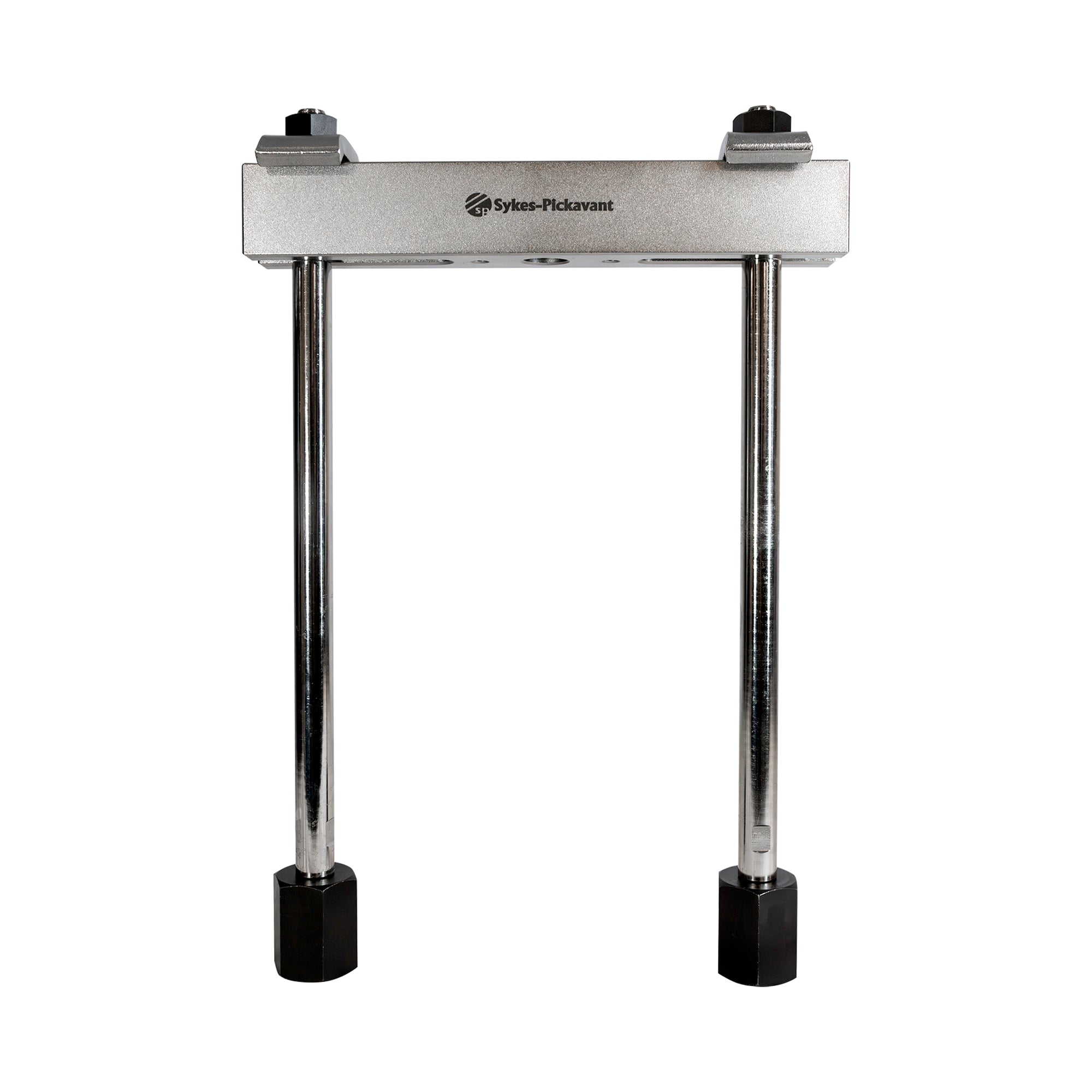

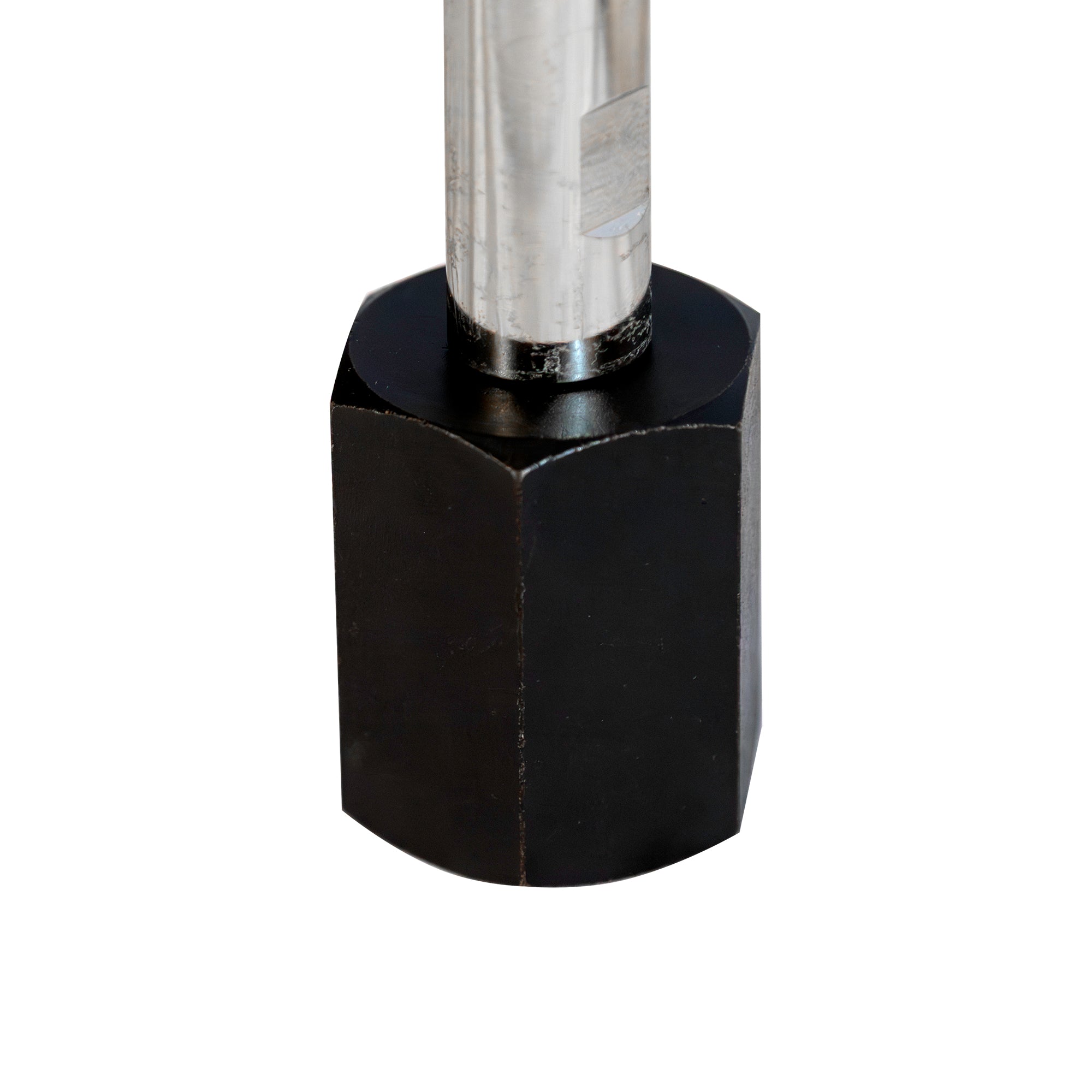

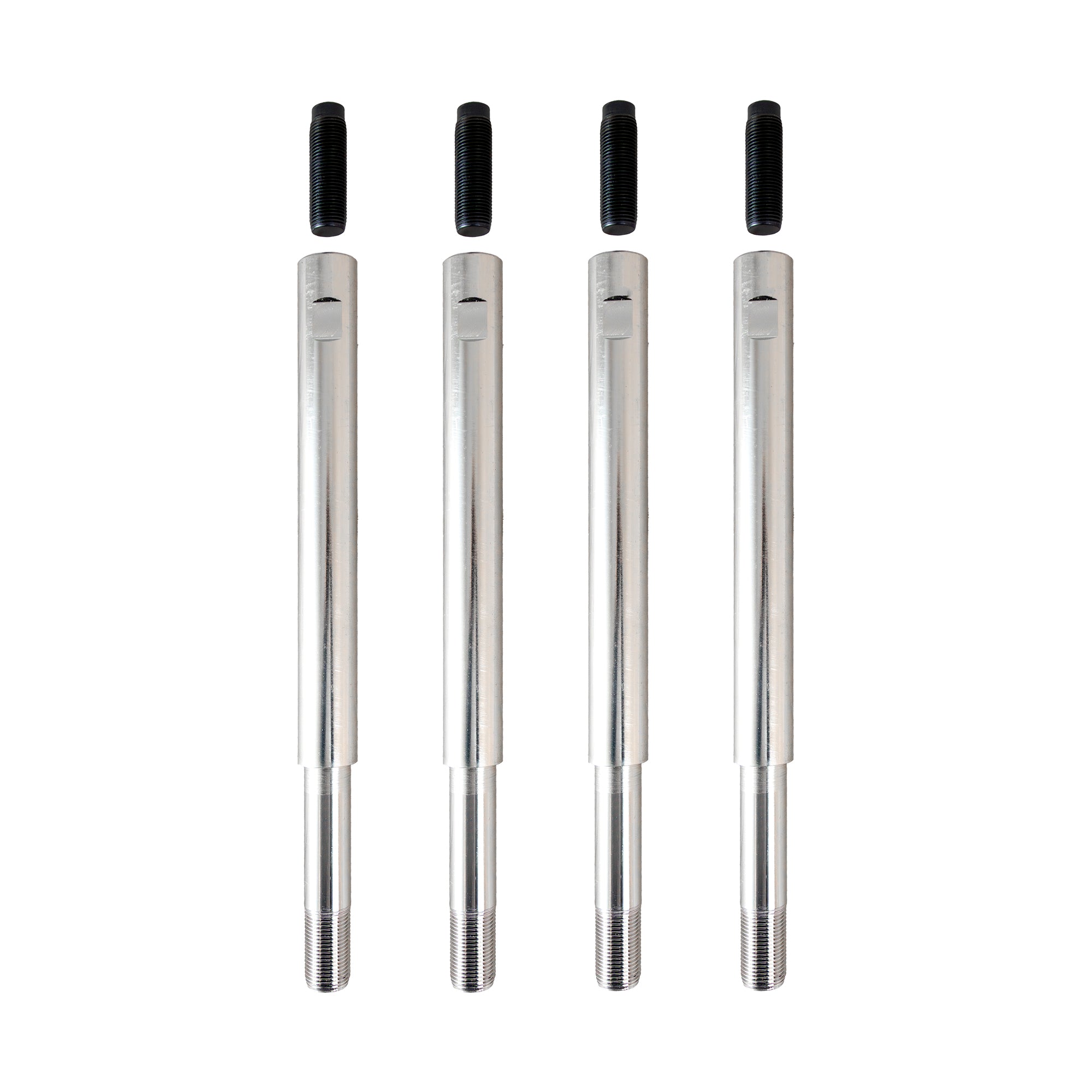

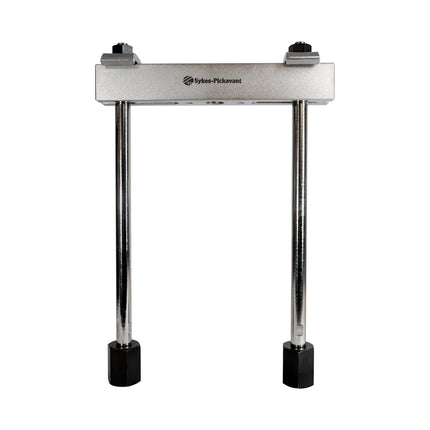

- Heavy duty cross beam with twin support legs for stable load distribution
- 20 tonne hydraulic ram included
- For use with hydraulic hand pump (not included, optional extra 20017000 or 20017500)
- Controlled, even pulling force reduces risk of component damage
- Robust construction for industrial environments

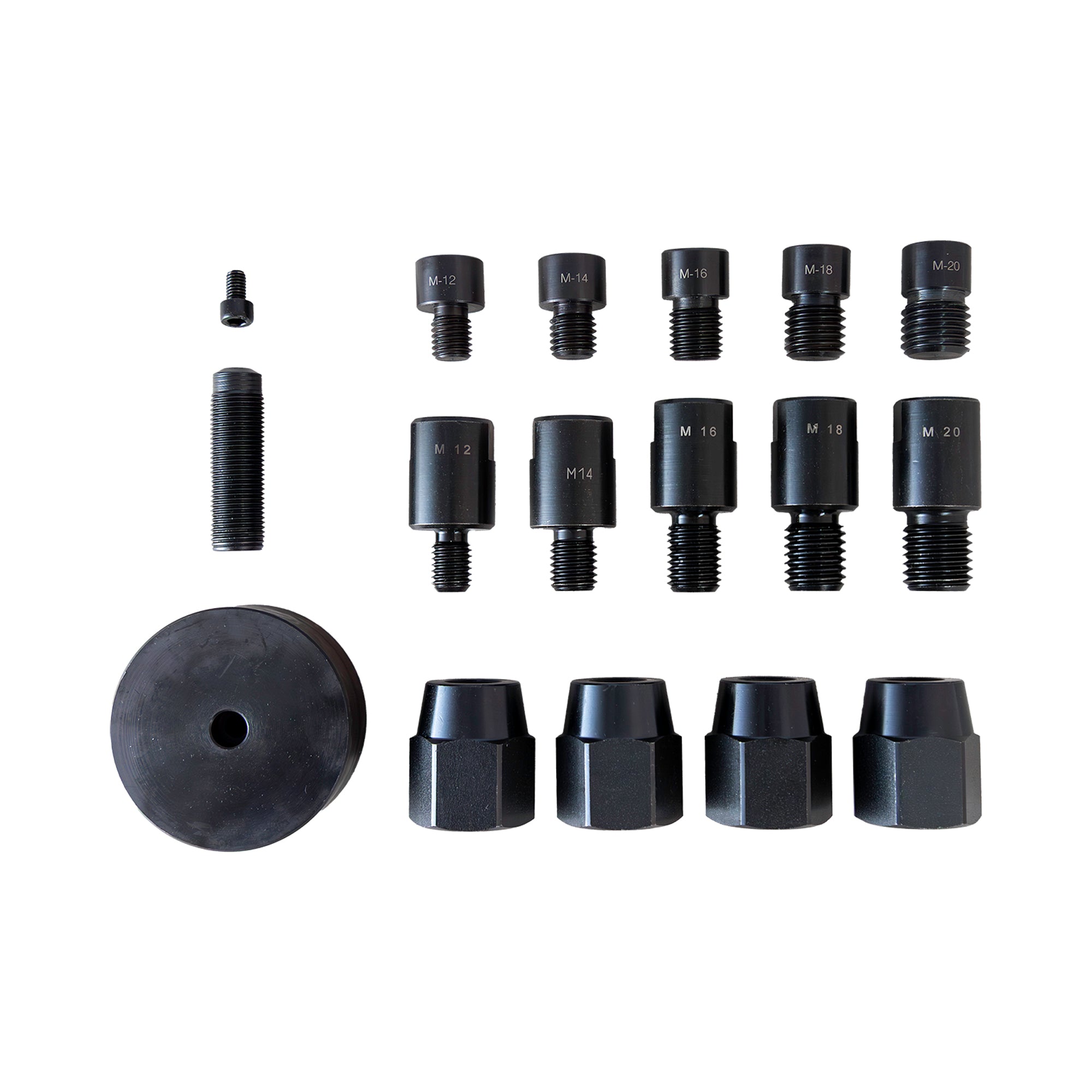

- Includes adaptors and striking plate, allowing you to insert a new pin without damaging the pin or the thread.
Specifications
- Max Bolt Length - 830mm
- Thread adaptors - M12 / M14 / M16 / M18 / M20
- Hydraulic Cylinder - 20 Tonne
- Min Spread - 104mm (140mm from centre of threads)
- Max Spread - 293mm (328mm from centre of threads)
Optional Extra
Enhance your kit with a Sykes Pickavant Hydraulic Pump
