314275DG - Diesel Engine Compression Test Kit - (CRD) - Digital Gauge
Comprehensive test kit designed for a wide range of modern Common Rail Diesel engines, now supplied with the 314051BT Bluetooth Pressure Sensor & Q/C Hose in place of the analogue gauge.
- Checks engine compression under cranking conditions
- Digital LCD pressure display with integrated Bluetooth connectivity
- Wireless live pressure monitoring and data logging via iOS / Android app
- Bluetooth transmission range up to 100 metres
- Enables cylinder access through dummy injector and glow plug adaptors
- Quick release hose connection for fast set-up and repeat testing
- Suitable for modern Common Rail Diesel (CRD) applications

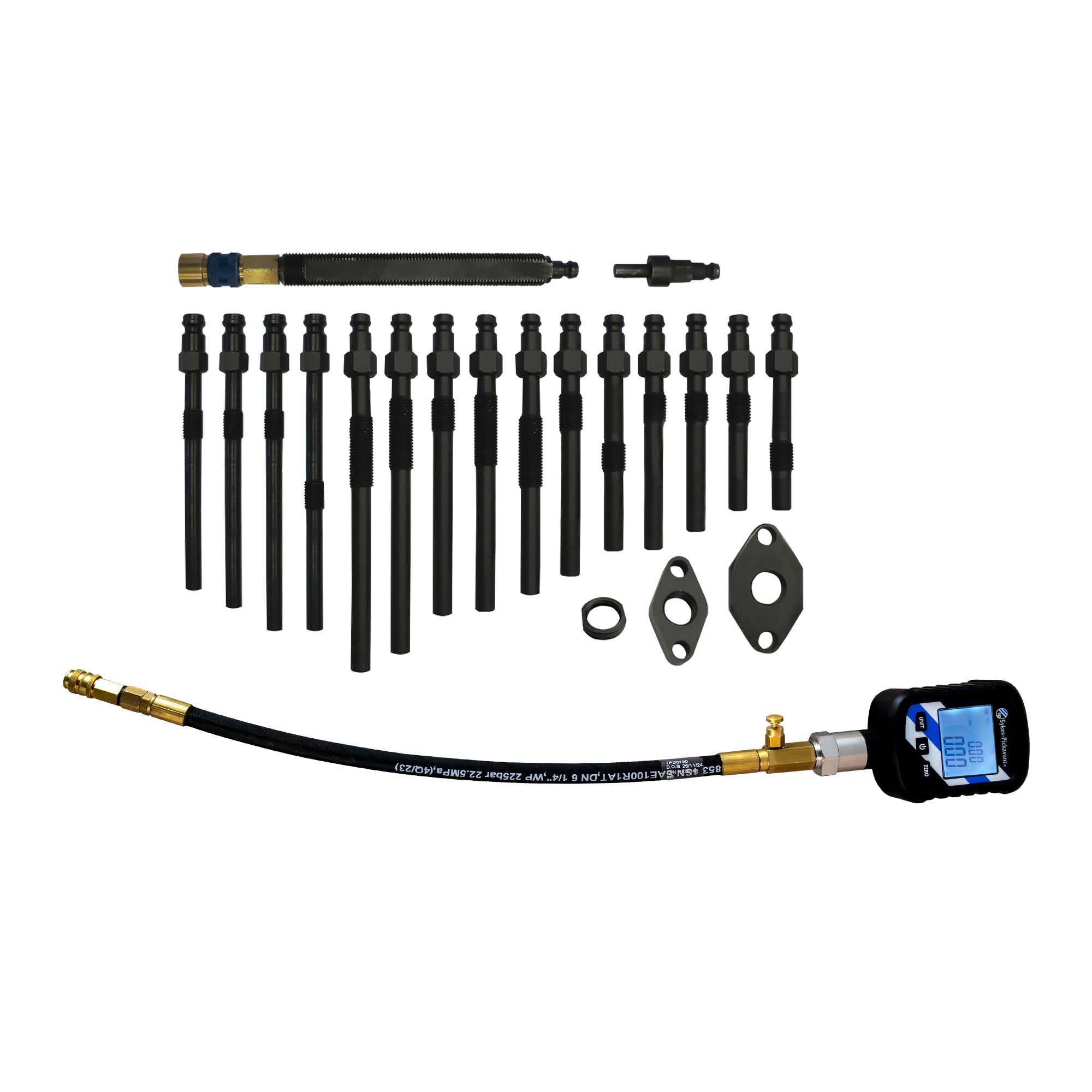

Contents
- Supplied in plastic carry case with foam insert
- 314051DG Digital Gauge & Q/C Hose - 0-60 Bar - With Bluetooth
- 15 x Dummy Glow Plugs for CRD engines
- CRD Dummy Injector and Clamps for applications where injector removal is preferred
- Vehicle application list included
Bluetooth Pressure Sensor Features
- Range: 0-60 Bar
- Accuracy: ±0.5%FS
- 1s transmission rate
- Bluetooth transmission greater than 20m
- CR2032 battery-powered, typical battery life 12 months
- IP65 protection level
- Compatible with current Sykes Pickavant petrol & diesel compression gauge products
Applications Include
- Mercedes CDI 2.0, 2.1, 2.2, 2.7, 3.0, 3.2, 3.9, 4.0 (M8 & M10)
- Opel / GM 1.7DI, DTI, CDTI, 2.0 / 2.2DT, DTI, DDTI
- VAG Common Rail 1.6, 2.0, 2.7, 3.0TDI
Includes following adaptors
- 31421670 - M9 X 1.0 - FCA, GM & Asian Imports
- 31427170V2 - M10 X 1.25 Asian Imports
- 31423170 - M8 X 1.0 Fiat & GM
- 31424970 - M10 X 1.0 JLR, Ford, Mercedes-Benz & Peugeot
- 31425470V2 - M10 X 1.0 Ford & Smart
- 31426970V2 - M10 X 1.7 GM, Chevrolet, Honda & Renault
- 31422370 - M8 X 1.0 Mercedes-Benz & Chrysler
- 3142687V2 - M10 X 1.0 VAG, GM, Chrysler, Mercedes-Benz, Porsche & Saab
- 31420970 - M10 X 1.25 1.4D MINI, Subaru & Toyota
- 3142677V2 - M10 X 1.0 GM, Nissan & Renault
- 31425270V2 - M10 X 1.0 HDI PSA, Fiat, Ford, Suzuki & Volvo
- 31421770 -M10 X 1.0 Mercedes-Benz, Nissan, GM & Renault
- 31427470V2 - M10 X 1.0 PSA, GM, VAG, Asian Imports, BMW, Dacia, Honda, Land Rover, Mercedes-Benz, MINI, Nissan, Renault, Rover & Volvo
- 31427170V2 - M10 X 1.25 Asian Imports
See Downloads section for Common Applications
Bluetooth App
The 314001DG app supports iOS and Android Bluetooth apps. Once connected, the app can be used to display pressure values, start/stop logging, and export CSV test filess. See more in our overview video.
Download the app from the iOS App Store or Google Play Store below. Note that in order to install the download, you will need to set your device to allow installations from "unknown parties" in your security settings.
