Description

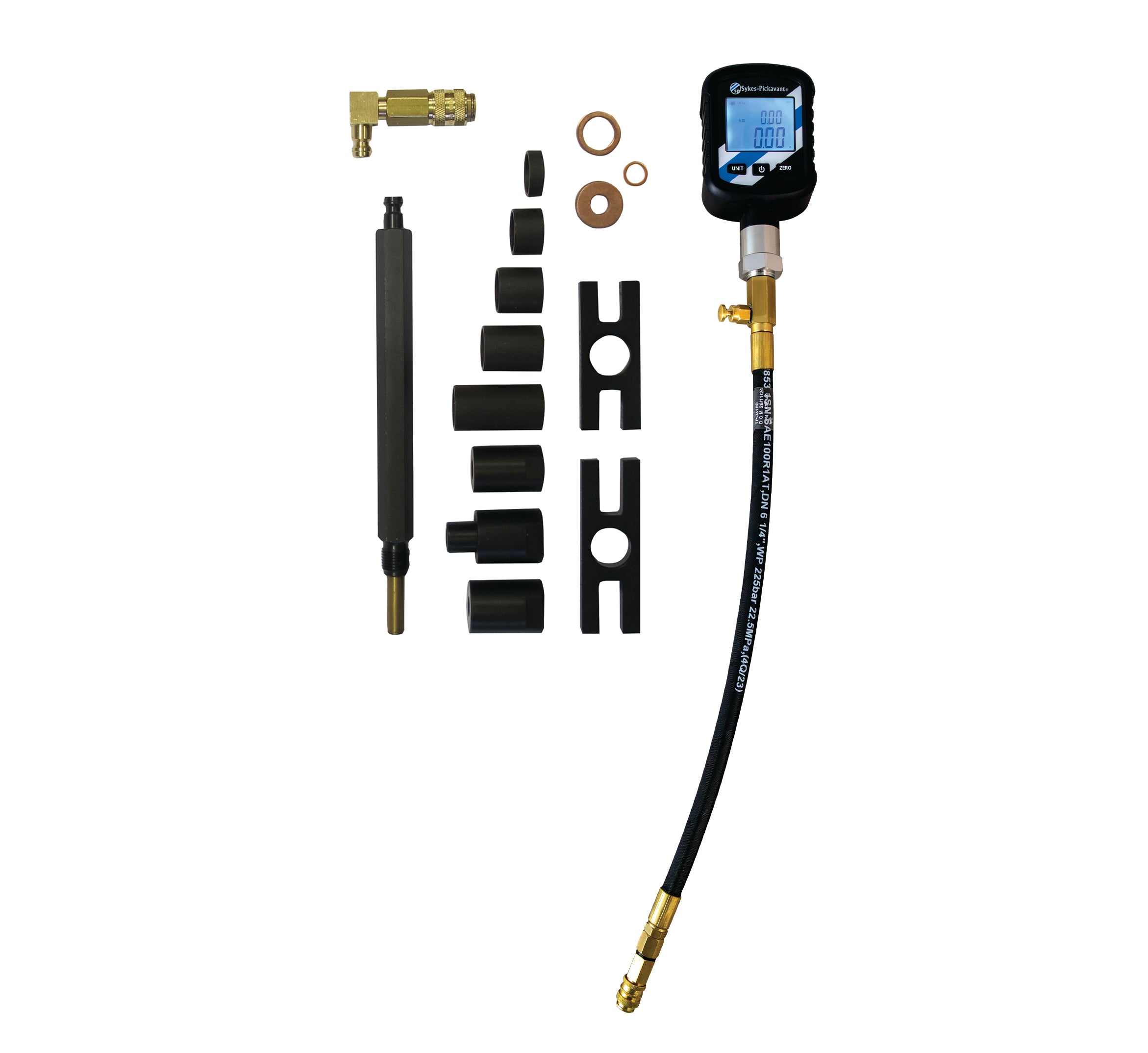

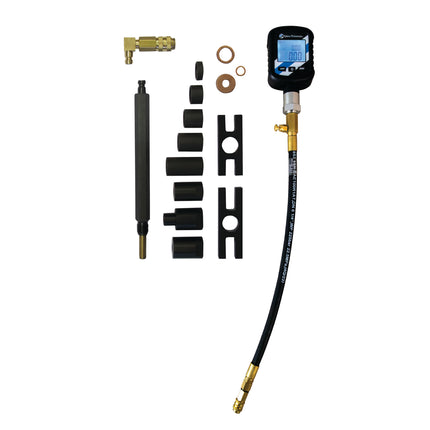

314300DG - Diesel Engine Compression Test Kit - CV - with Digital Gauge
Professional commercial vehicle diesel compression test kit supplied with the 314051DG - Digital Gauge, replacing the traditional analogue gauge with a digital Bluetooth-enabled pressure monitoring system.
Designed for testing compression on both direct and indirect heavy duty diesel engines across Industrial, Plant, Marine and Agricultural applications.
- Digital LCD pressure gauge with integrated Bluetooth connectivity
- Suitable for commercial vehicle and heavy duty diesel engines
- Wireless pressure monitoring and recording via mobile app
- Live pressure display directly on the digital gauge
- Data logging and CSV export functionality
- Quick release hose connection for efficient workshop use
- Starter adaptor kit for a wide range of commercial diesel applications
Specification
- Hose Assembly Length: 560mm
- Pressure Range: 0-60 Bar
- Bluetooth transmission up to 100m
- High precision digital pressure monitoring
Contents
Supplied in plastic carry case with foam insert:
- 314051DG Digital Gauge & Q/C Hose - 0-60 Bar - With Bluetooth
- End Adaptors x3
- Spacers x5
- Clamp Plates x2
- Centre Pillar
- Elbow Connector
Digital Gauge Features
- Range: 0-60 Bar
- LCD digital pressure display
- Integrated Bluetooth functionality
- Wireless transmission up to 100m
- App-based recording and CSV export
- Quick release hose fitting
- Compatible with existing Sykes Pickavant compression testing systems
Bluetooth App
The 314001DG app supports iOS and Android Bluetooth apps. Once connected, the app can be used to display pressure values, start/stop logging, and export CSV test filess. See more in our overview video.
Download the app from the iOS App Store or Google Play Store below. Note that in order to install the download, you will need to set your device to allow installations from "unknown parties" in your security settings.
Enquire About This Product
