Description

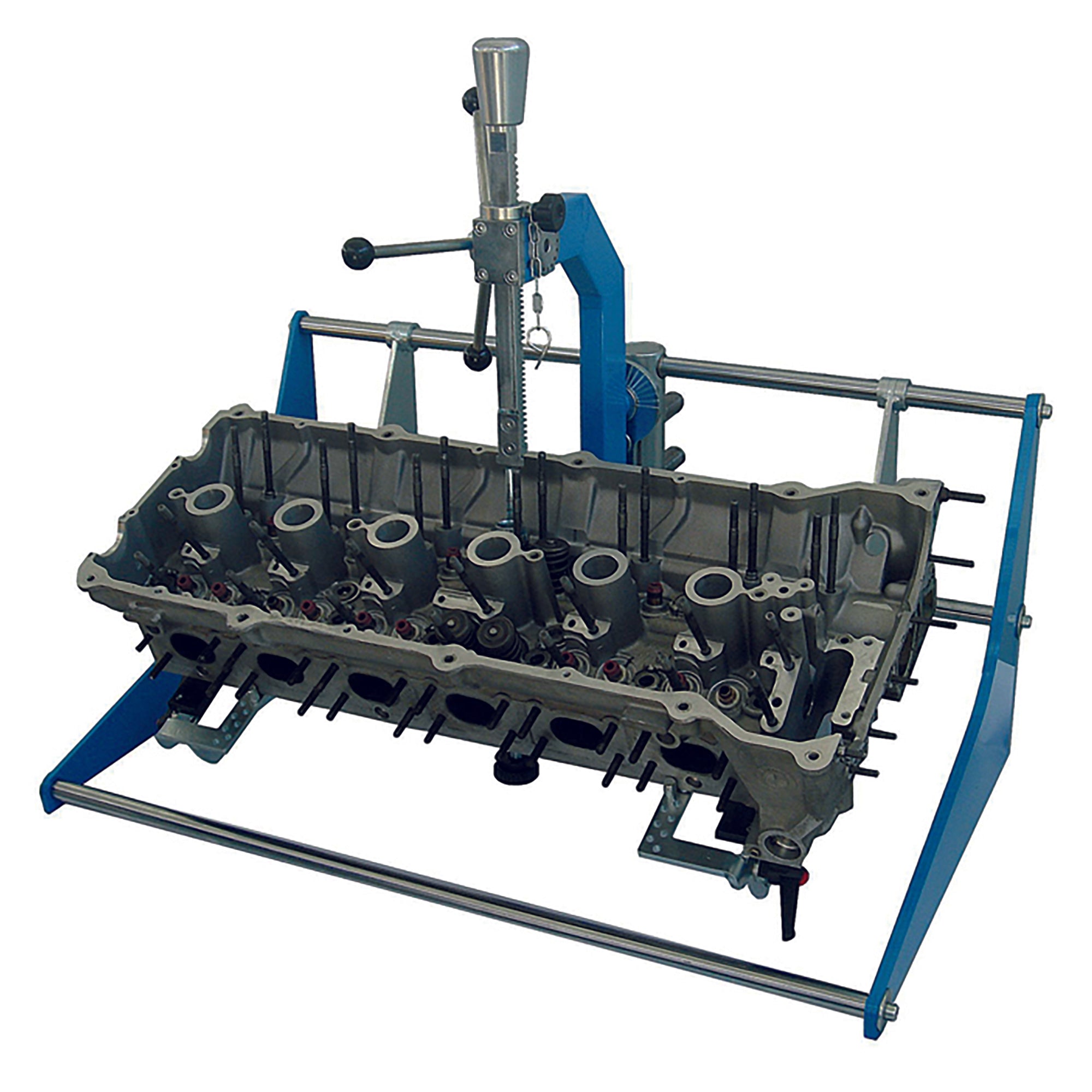

GO950 - Manual Value Spring Compressor Bench
The GO950 Manual Valve Spring Compressor Bench is a robust, workshop-ready solution designed for efficient and precise valve spring servicing on cars and commercial vehicles. Built for reliability and ease of use, it enables technicians to work safely, accurately, and with both hands free.
The two head supports are implemented with non-scratch plastic material and are adjustable from 0 to 30°. There are two handles for locking when the right inclination is set.
Key Features
-
Fully adjustable cylinder head supports with non-scratch plastic surfaces to protect components
-
Variable inclination (0–30°) with secure dual-handle locking for optimal positioning
-
Flexible head positioning via adjustable pin system for different applications
-
Extended push rod adjustment ideal for deep valve chambers
-
Rotating frame (±30°) with forward and backward regulation for improved access
-
Integrated travel limit device ensures consistent stroke for every valve
-
Hands-free operation by locking the compressed spring position, improving efficiency and safety
-
Slide hammer compatibility for releasing stubborn valves when required
Specifications
- Dimensions: 785x500x625 mm
- Stroke: 265 mm
- Cylinder head: 750 mm
- Length: min. 185 mm
- Inclination angle = 0° - 30°
- Total weight: 25,5 Kg
Applications
- Cars and commercial vehicles
